Product Name:DTRO

Affiliate classification:

Product Profile:

Xiamen Jiarong Technology Co., Ltd. is a high-tech company with membrane separation technology as its The disc tube membrane module includes DTRO, DTNF and HPDTRO membrane modules. Because the membrane module has an open flow channel structure, the membrane module can simplify the pretreatment and directly desalinate and concentrate the high-salt, high-COD wastewater, or high-concentration materials.

Online consultation

Product Information

product description

Xiamen Jiarong Technology Co., Ltd. is a high-tech company with membrane separation technology as its core, dedicated to environmental protection water treatment engineering applications and industrial cleaner production process development. DT / ST / MT membrane technology is a big progress in the field of membrane module technology. It was introduced from Germany in 2010 by Jiarong Technology. With more than ten years of industrial membrane technology practical experience, Jiarong technology has been continuously improved to form a series of products and systems Integrated technology is widely used in landfill leachate treatment, desulfurization wastewater treatment, coal chemical wastewater and oil and gas field wastewater treatment.

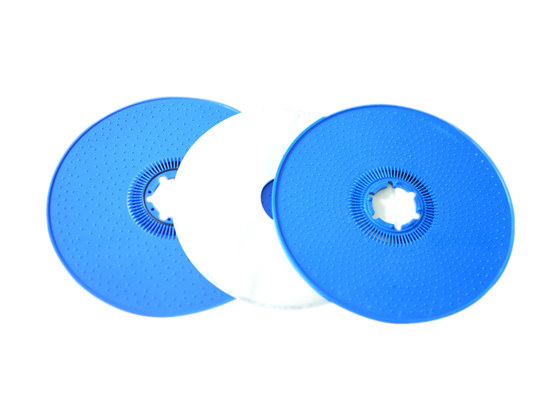

Diaphragm mapCore diagram


DT membrane module technical parameters

DT membrane: reverse osmosis, nanofiltration, applied to landfill leachate, is an industrial anti-pollution RO membrane, its rejection rate to sodium chloride is ≥99%
Membrane module area: 9.405㎡ / branch
Feed flow: maximum 2m³ / h, minimum 0.8 m³ / h, each membrane
pH range: 3-10, 2-13 when cleaning
Temperature range: up to 45 ° C (for operation at 70 ° C, a high-temperature deflector is required)
Weight: dry weight 65Kg
Pressure rating: 75bar, 90bar, 120bar

Application area

Landfill leachate treatment
Leachate concentrate
Salt concentration of industrial wastewater
High concentration of materials
Concentration and zero discharge of industrial high-salt wastewater
